Summary table module

Source: vignettes/summary_table.Rmd
summary_table.Rmd

This guide provides a detailed overview of the dv.tables::mod_summary_table() module and its features. It is meant to provide guidance to App Creators on creating Apps in DaVinci using the module. Walk-throughs for sample app creation using the module are also included to demonstrate the various module specific features.

The module makes it possible to visualize summary statistics on one or more numerical or categorical analysis variables grouped by variables from the population and analysis datasets.

Features

  • Summary statistics for one or more analysis variables, either count and percent for categorical data variables, or a selection of statistics for numerical data variables.
  • Multiple levels of grouping by population dataset variables define the columns of the summary table, with group population size (N) displayed for each column. A special grouping level derived from one or more population flagging variables can also be used.
  • An optional “Total” group can be derived and displayed for the first population grouping level.
  • In addition to the top-level analysis variable sections, further levels of grouping by analysis dataset variables define the row hierarchy of the summary table. The application can also be set up to create new categories for grouping variables based on analysis dataset variable flags, e.g. last value on treatment category.
  • Optional aggregation of multiple participant results corresponding to a grouping (e.g. multiple lab results for a participant at a single visit) can be specified using an aggregation function.
  • Analysis variable sections and row groups can be individually collapsed/hidden.
  • It supports bookmarking.

Arguments for the module

The dv.tables::mod_summary_table() module uses several mandatory arguments with the rest of the arguments defaulted or optional. As part of app creation, the app creator should specify the values for all mandatory arguments, and values for any other arguments as applicable.

Mandatory Arguments

  • module_id : A unique identifier of type character for the module in the app.
  • table_dataset_name: The name of the dataset that contains the analysis variables to be summarized, e.g., "ADLB".
  • pop_dataset_name: The name of the dataset that contains the population grouping variables. Typically this will be a one-record-per-participant dataset, e.g., "ADSL", but may also be one-record-per-participant-per-group to accommodate crossover and summary population analyses.

Please refer to dv.tables::mod_summary_table() for the complete list of arguments and their description.

Input menus

A drop-down “Column Selection” menu provides the following inputs:

  • Summarize on: Selection of one or more numerical/categorical analysis variables from the analysis dataset, to be summarized, e.g. AVAL, CHG, AGE, SEX, RACE, etc.
  • Group by: Selection of one or more grouping variables from the population dataset, to be displayed across the top of the table, e.g. ARM, TRT01P, SEX, RACE, etc.
  • Row by: Selection of one or more grouping variables from the analysis dataset, to group each analysis variable, e.g. PARAM, AVISIT, etc.
  • Population flags: Selection of one or more flagging variables from the population dataset, to be displayed across the top of the table. The flags are subsetting on "Y" values. This selection and the associated checkbox are shown only if the app creator has specifically enabled population flags.
  • Move after grouping variables: Checkbox that controls whether the flags should be moved to after (below) the grouping variables. Otherwise, they will appear before (above) the grouping variables.

A drop-down “Statistics” menu provides the following inputs:

  • Statistics for numerical analysis: A list of checkboxes controlling which summary statistics are displayed for the numerical analysis variables.

A drop-down “Table Options” menu provides the following inputs:

  • Show a total column: Checkbox that controls whether or not to display a “Total” column totalling data from all group categories for the first population grouping level.
  • Drop NA values from groupings/categories: Checkbox that controls whether or not to exclude rows from population and analysis datasets when any ‘Group by’ or ‘Row by’ variable value is missing (NA), and exclude rows from the analysis dataset when a categorical analysis variable value is missing. Note that rows are always excluded from the analysis dataset when a numerical analysis variable value is missing.
  • Remove rows with no data: Checkbox that controls whether to hide rows that have no analysis data. Row groupings can result in many unwanted combinations, e.g. when grouped by parameter and visit, by default all combinations of parameters and visits are shown, but if a parameter is not assessed at certain visit then it does not make sense to display a row for that visit.
  • Remove columns with no data: Checkbox that controls whether to hide columns that have no participant population data. Population groupings can result in many unwanted combinations, e.g. when grouped by population flags and treatment groups, by default all combinations of population flags and treatment groups are shown, but if a treatment group does not occur for a certain population flag then it does not make sense to display a column for that treatment group.
  • Show categorical n: Checkbox that determines whether to show the ‘n’ category when summarizing categorical data.
  • Denominator used for categorical %: Radio buttons that determine the denominator choice for categorical data, either the number of participants from the population grouping (“N”) or the number of participants from the ‘Row by’ grouping for each population grouping (“n”). If the user selects to drop NA values then those values will be excluded from determining the “n” denominator.
  • Multi-value aggregation method: Radio buttons that determine the method to use for aggregating rows when more than one row per participant exists after population grouping and row categorization has been applied. The method is applied to the analysis variable. These buttons are shown only if the app creator has specifically enabled aggregation.

Visualizations

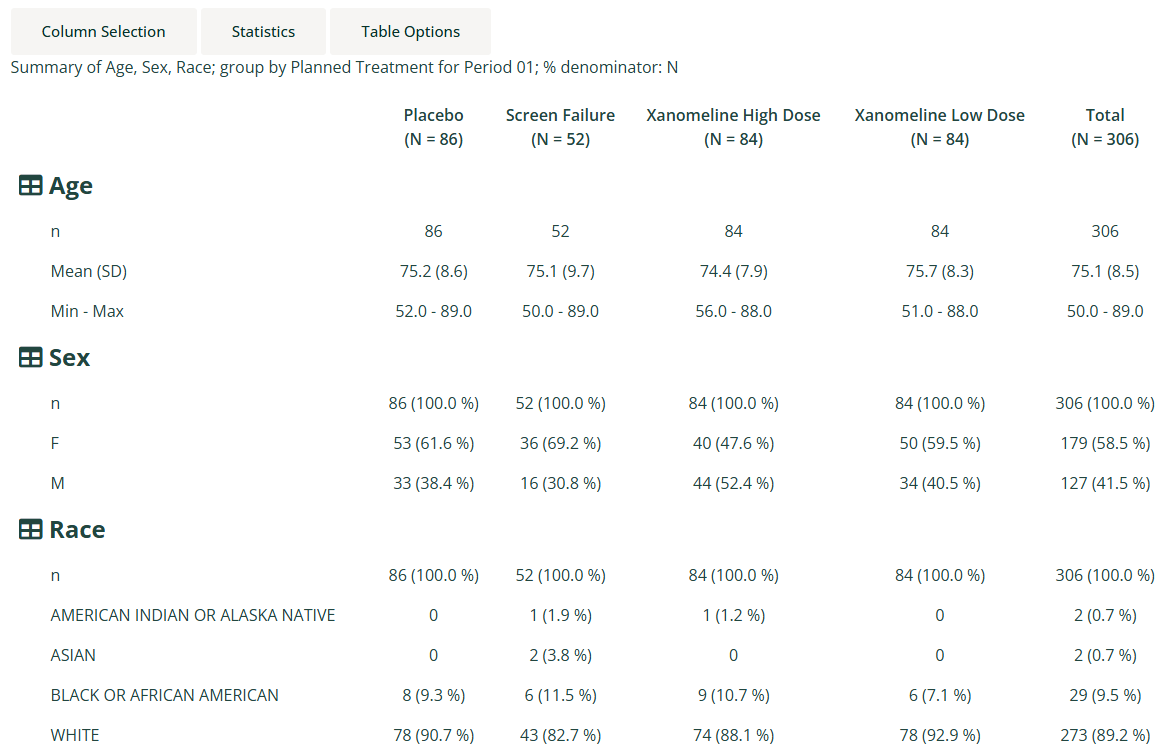

Demographic Summary table

A collapsible demographic analysis summary table. The participant-level population dataset name is passed to both the table_dataset_name and pop_dataset_name arguments.

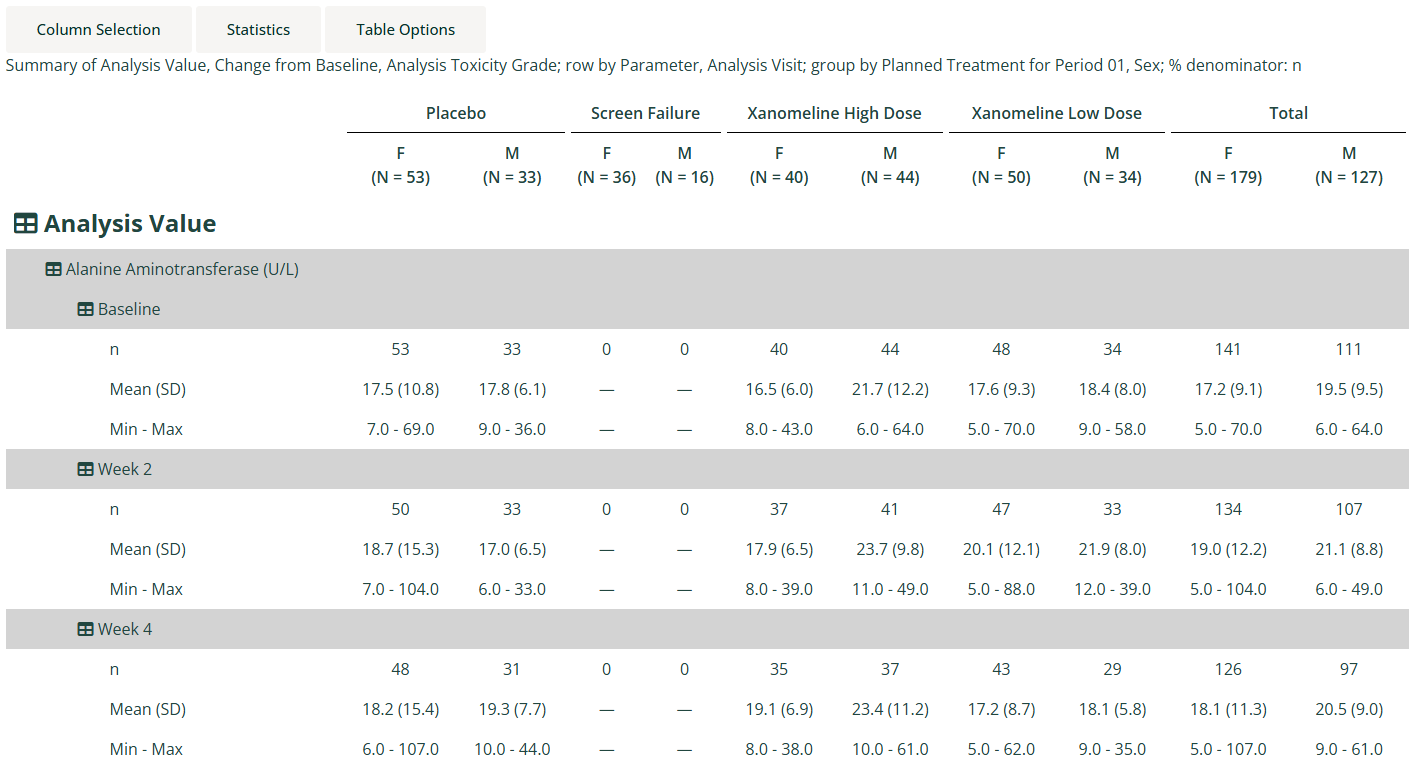

Laboratory Summary table

A collapsible laboratory analysis summary table with rows grouped by parameter and visit. The participant-level population dataset name is passed to the pop_dataset_name argument and the laboratory results dataset name is passed to the table_dataset_name argument.

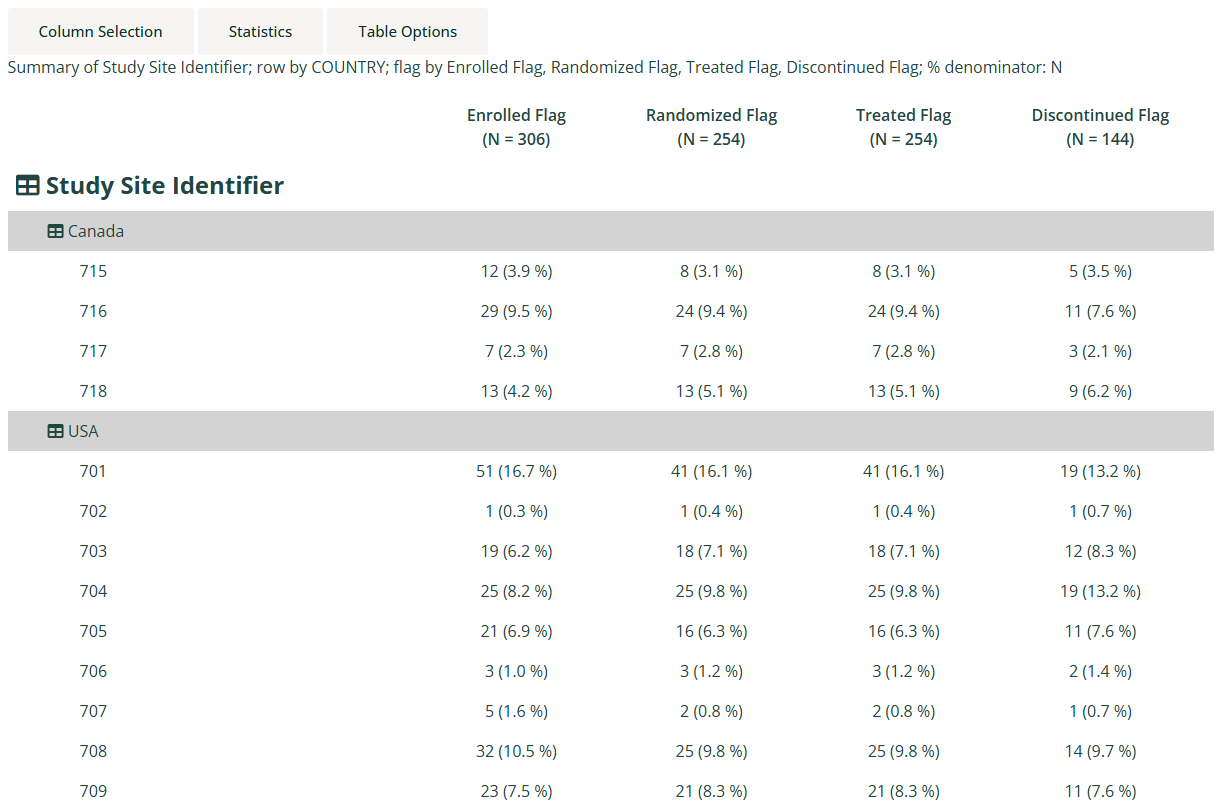

Population Summary table

A collapsible population summary table with populations displayed across the top of the table. The participant-level population dataset name is passed to both the table_dataset_name and pop_dataset_name arguments.

Creating a summary table application

Example 1

The following code specifies the bare minimum module arguments with no default analysis, group or row variables specified:

dv.manager::run_app(
  data = list(pharmaverseadam = list(adsl = pharmaverseadam::adsl)),
  module_list = list(
    "ADSL Summary Table" = dv.tables::mod_summary_table(
      module_id = "summary_table",
      table_dataset_name = "adsl",
      pop_dataset_name = "adsl"
    )
  ),
  filter_dataset_name = "adsl",
  filter_key = "USUBJID"
)

Example 2

The following code specifies module arguments for the summary of age statistics and sex and race categories by planned treatment group:

dv.manager::run_app(
  data = list(pharmaverseadam = list(adsl = pharmaverseadam::adsl)),
  module_list = list(
    "ADSL Summary Table" = dv.tables::mod_summary_table(
      module_id = "summary_table",
      table_dataset_name = "adsl",
      pop_dataset_name = "adsl",
      default_summarize_on = c("AGE", "SEX", "RACE"),
      default_group_by = c("TRT01P"),
      default_stats = c("n", "meansd", "meanci", "minmax")
    )
  ),
  filter_dataset_name = "adsl",
  filter_key = "USUBJID"
)

Example 3

The following code specifies module arguments for the summary of laboratory analysis values and change from baseline statistics, and toxicity grade categories by planned treatment group and sex, with rows grouped by parameter and visit:

adsl <- pharmaverseadam::adsl
adlb <- pharmaverseadam::adlb |>
  dplyr::filter(.data[["LBTESTCD"]] %in% c("ALP", "ALT", "AST", "BILI"),
                .data[["AVISITN"]] %in% c(0, 4, 5, 7))

dv.manager::run_app(
  data = list(pharmaverseadam = list(adsl = adsl, adlb = adlb)),
  module_list = list(
    "ADLB Summary Table" = dv.tables::mod_summary_table(
      module_id = "summary_table",
      table_dataset_name = "adlb",
      pop_dataset_name = "adsl",
      show_aggregate_method = TRUE,
      default_summarize_on = c("AVAL", "CHG", "ATOXGR"),
      default_group_by = c("TRT01P", "SEX"),
      default_row_by = c("PARAM", "VISIT"),
      default_denom = "n",
      default_aggregate_method = "max"
    )
  ),
  filter_dataset_name = "adsl",
  filter_key = "USUBJID"
)

The aggregation functionality has been turned on (show_aggregate_method = TRUE) and the max function has been specified for the default aggregation method, so if a participant has more than one lab result for a specific parameter and visit, then the maximum value will be taken before it gets processed in the main statistical analysis. The app creator needs to decide on the most appropriate aggregation functions (which can be specified by choices_aggregate_method), but only a single aggregation function can be applied at a time; it is not possible to handle cases where the aggregation method varies between parameters - in this case the data would need to be pre-processed/aggregated before being passed to the app.

Note: Summarizing large datasets with more than one grouping can take a long time to process so pre-subsetting on the values of interest is recommended. If subsetting was not applied to the above example, then it would take around 15 minutes to process.

Example 4

The following code specifies example pre-processing and module arguments for a population summary table with populations displayed across the top of the table, and linking to patient profiles enabled:

adsl <- pharmaverseadam::adsl

adsl <- pharmaverseadam::adsl |>
  dplyr::mutate(ENRLFL = "Y",
                TRTFL = ifelse(is.na(TRTSDT), "N", "Y"),
                RANDFL = ifelse(is.na(RANDDT), "N", "Y"),
                DISCFL = ifelse(EOSSTT == "DISCONTINUED", "Y", "N"))

attr(adsl[["ENRLFL"]], "label") <- "Enrolled Flag"
attr(adsl[["RANDFL"]], "label") <- "Randomized Flag"
attr(adsl[["TRTFL"]], "label") <- "Treated Flag"
attr(adsl[["DISCFL"]], "label") <- "Discontinued Flag"

dv.manager::run_app(
  data = list(pharmaverseadam = list(adsl = adsl)),
  module_list = list(
    "Population Summary" = mod_summary_table(
      module_id = "pop_summtab",
      show_pop_flag_selection = TRUE,
      table_dataset_name = "adsl",
      pop_dataset_name = "adsl",
      default_summarize_on = c("SITEID"),
      default_group_by = NULL,
      default_row_by = c("COUNTRY"),
      default_total = FALSE,
      default_drop_na = TRUE,
      default_drop_empty_rows = TRUE,
      default_show_category_n = FALSE,
      default_pop_flags = c("ENRLFL", "RANDFL", "TRTFL", "DISCFL"),
      default_pop_flags_after_groups = FALSE,
      receiver_id = "papo"
    ),
    "Patient Profile" = dv.papo::mod_patient_profile(
      module_id = "papo",
      subject_level_dataset_name = "adsl",
      subjid_var = "USUBJID",
      sender_ids = c("pop_summtab"),
      summary = list(vars = c("AGE", "SEX", "RACE", "ETHNIC", "ARM"),
                     column_count = 1)
    )
  ),
  filter_dataset_name = "adsl",
  filter_key = "USUBJID"
)

Example 5

The following code shows and example of how to create new categories for the VISIT and AVISIT grouping variables based on analysis dataset variable flags LVOTFL (Last Value On Treatment Record Flag), MINTRFL (Minimum On Treatment Flag), and MAXTRFL (Maximum On Treatment Flag):

adsl <- pharmaverseadam::adsl

adlb <- pharmaverseadam::adlb |>
  dplyr::filter(.data[["LBTESTCD"]] %in% c("ALP", "ALT", "AST", "BILI"),
                .data[["AVISITN"]] %in% c(0, 4, 5, 7))

# Last value on treatment
adlb <- dplyr::select(adlb, -dplyr::any_of("LVOTFL"))
adlb <- dplyr::left_join(
  adlb,
  dplyr::filter(adlb,
                .data[["ANL01FL"]] == "Y",
                !is.na(.data[["ADT"]])) |>
    dplyr::arrange(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD", "ADT")))) |>
    dplyr::group_by(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD")))) |>
    dplyr::slice_tail(n = 1) |>
    dplyr::ungroup() |>
    dplyr::mutate(LVOTFL = "Y"),
  by = names(adlb)
)

# Minimum on treatment
adlb <- dplyr::left_join(
  adlb,
  dplyr::filter(adlb,
                .data[["ANL01FL"]] == "Y",
                !is.na(.data[["ADT"]])) |>
    dplyr::arrange(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD", "ADT")))) |>
    dplyr::group_by(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD")))) |>
    dplyr::slice_min(order_by = .data[["AVAL"]], n = 1, with_ties = FALSE, na_rm = TRUE) |>
    dplyr::ungroup() |>
    dplyr::mutate(MINTRFL = "Y"),
  by = names(adlb)
)

# Maximum on treatment
adlb <- dplyr::left_join(
  adlb,
  dplyr::filter(adlb,
                .data[["ANL01FL"]] == "Y",
                !is.na(.data[["ADT"]])) |>
    dplyr::arrange(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD", "ADT")))) |>
    dplyr::group_by(dplyr::pick(dplyr::all_of(c("USUBJID", "PARAMCD")))) |>
    dplyr::slice_max(order_by = .data[["AVAL"]], n = 1, with_ties = FALSE, na_rm = TRUE) |>
    dplyr::ungroup() |>
    dplyr::mutate(MAXTRFL = "Y"),
  by = names(adlb)
)

attr(adlb[["LVOTFL"]], "label") <- "Last Value On Treatment Record Flag"
attr(adlb[["MINTRFL"]], "label") <- "Minimum On Treatment Flag"
attr(adlb[["MAXTRFL"]], "label") <- "Maximum On Treatment Flag"

flagged_row_processing <- list(
  list(flag_var = "MINTRFL",
       dependent_vars = c("USUBJID", "PARAM"),
       var_assignments = list(VISIT = "MIN ON TRT",
                              AVISIT = "Minimum on treatment")),
  list(flag_var = "MAXTRFL",
       dependent_vars = c("USUBJID", "PARAM"),
       var_assignments = list(VISIT = "MAX ON TRT",
                              AVISIT = "Maximum on treatment")),
  list(flag_var = "LVOTFL",
       dependent_vars = c("USUBJID", "PARAM"),
       var_assignments = list(VISIT = "LAST VAL ON TRT",
                              AVISIT = "Last value on treatment"))
)

dv.manager::run_app(
  data = list(pharmaverseadam = list(adsl = adsl, adlb = adlb)),
  module_list = list(
    "ADLB Summary Table" = dv.tables::mod_summary_table(
      module_id = "summary_table",
      table_dataset_name = "adlb",
      pop_dataset_name = "adsl",
      default_summarize_on = c("AVAL", "CHG"),
      default_group_by = c("TRT01P"),
      default_row_by = c("PARAM", "AVISIT"),
      default_denom = "n",
      flagged_row_processing = flagged_row_processing
    )
  ),
  filter_dataset_name = "adsl",
  filter_key = "USUBJID"
)

New categories will only be created when the user selects row by variables

User-defined statistics for numerical analysis

A named list of statistical functions is passed to the stats_functions argument. The default is as follows:

stats_functions = list(
  n = length,
  mean = mean,
  sd = stats::sd,
  meanci = \(x) if (length(x) > 1L) stats::t.test(x, conf.level = 0.95)$conf.int else rep(NA_real_, 2L),
  geomean = \(x) if (all(x > 0)) exp(mean(log(x))) else NaN,
  median = stats::median,
  medianci = \(x) if (length(x) > 1L) stats::wilcox.test(x, exact = FALSE, conf.int = TRUE, conf.level = 0.95)$conf.int else rep(NA_real_, 2L),
  q1q3 = \(x) stats::quantile(x, c(0.25, 0.75)),
  min = min,
  max = max
)

The functions must either return a single numeric value (e.g. mean, stats::sd, etc.) or a vector of numeric values (e.g. \(x) stats::quantile(x, c(0.25, 0.75))). Note that the functions will not be applied to empty groupings, but if a function requires more than one data point (e.g. stats::t.test) then the error cases must be dealt with using a wrapper function:

meanci = function(x) {
  if (length(x) > 1L) { # At least 2 values needed for t.test
    stats::t.test(x, conf.level = 0.95)$conf.int
  } else { # Return tuple of NA values
    rep(NA_real_, 2L)
  }
}

When such functions return multiple values, those values can be referred to in stats_formats, stats_labels, and stats_replace by appending a dot followed by an incremented integer. So for the example of meanci which returns two values, those values can be referred to as meanci.1 and meanci.2 respectively.

User-defined combination and formatting of statistics for numerical analysis

A named list of formats can be passed to the stats_formats argument. The default is as follows:

stats_formats = list(
  n = list(fmt = "%d", "n"),
  meansd = list(fmt = "%.1f (%.1f)", "mean", "sd"),
  meanci = list(fmt = "(%.2f, %.2f)", "meanci.1", "meanci.2"),
  geomean = list(fmt = "%.1f", "geomean"),
  median = list(fmt = "%.1f", "median"),
  medianci = list(fmt = "(%.2f, %.2f)", "medianci.1", "medianci.2"),
  q1q3 = list(fmt = "%.1f - %.1f", "q1q3.1", "q1q3.2"),
  minmax = list(fmt = "%.1f - %.1f", "min", "max")
)

Each format is a list of arguments passed to sprintf(fmt, ...), typically the fmt argument first, followed by all the insertion values.

Values from single return value statistical functions defined in stats_functions are referred to by the name of the stats_functions list element (like "n", "mean" and "sd" in the default). Values from multi-value return statistical functions must be referred to using their integer suffix (like "meanci.1" and "meanci.2" in the default).

The formatted result is assigned to the element name (internally corresponding to an interim results data frame column name). Any results from functions given in stats_functions that do not appear in the formatting will be automatically formatted as character.

User-defined labelling of statistics for numerical analysis

A named vector of statistics labels can be passed to the stats_labels argument. The default is as follows:

stats_labels = c(
  n = "n",
  meansd = "Mean (SD)",
  meanci = "Mean 95% CI",
  geomean = "Geometric Mean",
  median = "Median",
  medianci = "Median 95% CI",
  q1q3 = "25% and 75%-ile",
  minmax = "Min - Max"
)

The names correspond either to the names assigned in the stats_formats list, or otherwise the names in the stats_functions list.

Labels apply to UI statistics checkbox labels and table statistics labels. Note that if a function defined in stats_functions returns more than one value, e.g. stats::quantile, and those values are not combined in stats_formats, then they appear separately in the table statistics, but the UI statistics checkbox will reflect the name given to the function definition. Labels can be applied to both cases, for example:

stats_functions = list(
  ...
  meanci = \(x) if (length(x) > 1L) stats::t.test(x, conf.level = 0.95)$conf.int else rep(NA_real_, 2L),
  ...
),
stats_formats = list(
  ...
  meanci.1 = list(fmt = "%.2f", "meanci.1"),
  meanci.2 = list(fmt = "%.2f", "meanci.2"),
  ...
),
stats_labels = c(
  ...
  meanci = "Mean 95% CI",            # Appears as text in UI checkbox
  meanci.1 = "Mean 95% CI (lower)",  # Appears as table statistic text
  meanci.2 = "Mean 95% CI (upper)",  # Appears as table statistic text
  ...
)

User-defined formatted value replacements for numerical analysis

A named list of formatted value replacements can be passed to the stats_replace argument. Primarily this is used for presentation formatting, such as replacing values like NA and NaN with zeros, dashes or NE. Each replacement is a list(pattern =, replacement =) pair, where pattern is a regular expression matched against the formatted result and replacement is the string substituted in; pairs are applied in order. The default is as follows:

stats_replace = list(
  n = list(list(pattern = "^NA$", replacement = "0")),
  meansd = list(
    list(pattern = "^NA \\(NA\\)$", replacement = SUMMTAB$VAL$EM_DASH),
    list(pattern = "\\(NA\\)$", replacement = sprintf("(%s)", SUMMTAB$VAL$EM_DASH))
  ),
  meanci = list(list(pattern = "^\\(NA, NA\\)$", replacement = SUMMTAB$VAL$EM_DASH)),
  geomean = list(
    list(pattern = "^NA$", replacement = SUMMTAB$VAL$EM_DASH),
    list(pattern = "^NaN$", replacement = "NE")
  ),
  median = list(list(pattern = "^NA$", replacement = SUMMTAB$VAL$EM_DASH)),
  medianci = list(list(pattern = "^\\(NA, NA\\)$", replacement = SUMMTAB$VAL$EM_DASH)),
  q1q3 = list(list(pattern = "^NA - NA$", replacement = SUMMTAB$VAL$EM_DASH)),
  minmax = list(list(pattern = "^NA - NA$", replacement = SUMMTAB$VAL$EM_DASH))
)

The name of each element of the outer list directly corresponds to a name from the stats_formats list.

Each of those elements is a named vector defining regular expression substitutions to be applied for that formatted statistic. The names given to the vector elements are regular expressions to match the formatted results, and the elements themselves are the replacement strings.

In the default, the em dash (long dash) has been specified by the package constant SUMMTAB$VAL$EM_DASH, but the unicode value, "\u2014", can also be directly used.

Download

This module currently does not allow downloading the table as Excel (.xlsx) or Word (.rtf).

Drill down functionality

When a cell is clicked the set of participants contributing to the cell is shown. Each of the identifiers is clickable and it allows exploring that participant in an additional module, for example dv.papo.
